Metro adapter plate dimensions

View all ForkenSwift galleries > Adapter plate ...

	Cardboard template, then 5/8th aluminum sheet Making the template for the adapter was pretty easy: a piece of cardboard (top) was taped across the bell housing, the o...
	But first check that the motor diameter will fit the transmission! When planning the adapter plate, we discovered that the the forklift's main 12.5 inch diameter traction motor that we ha...
	Adapter plate on transmission One of the most critical jobs involving the plate is aligning the electric motor perfectly with the transmission input s...

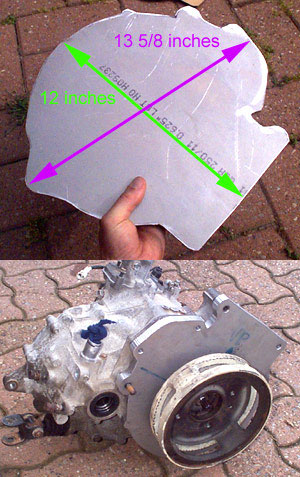

	Metro adapter plate dimensions For anyone else looking for rough dimensions of the bell housing, here are 2 dimensions taken from the adapter plate....
	Metro adapter plate dimensions For anyone else looking for rough dimensions of the bell housing, here are 2 dimensions taken from the adapter plate....
