Baker forklift + Suzuki Swift + Geo Metro = Project ForkenSwiftProject ForkenSwift - Electric car conversion on a beer budget
shadow
shadow

But first check that the motor diameter will fit the transmission!


< prev. photo
next photo >

But first check that the motor diameter will fit the transmission!

When planning the adapter plate, we discovered that the the forklift's main 12.5 inch diameter traction motor that we had originally planned to use in the car WAS TOO BIG to use with this transmission!

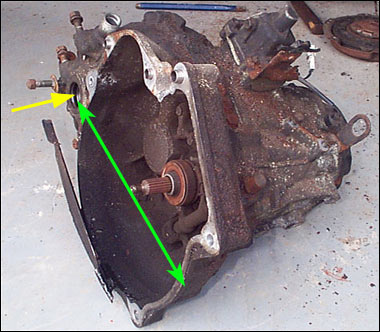

With the motor shaft aligned with the transmission's input shaft, the motor diameter (green arrow) was actually slightly larger than the outside diameter of the bell housing.

It was big enough that it would have interfered with the axle where it connects to the differential (yellow arrow).

So we ended up using one of the forklift's smaller diameter hydraulic pump motors instead.

View all ForkenSwift galleries > Adapter plate ...

Cardboard template, then 5/8th aluminum sheet
Making the template for the adapter was pretty easy: a piece of cardboard (top) was taped across the bell housing, the o...
But first check that the motor diameter will fit the transmission!
When planning the adapter plate, we discovered that the the forklift's main 12.5 inch diameter traction motor that we ha...
Adapter plate on transmission
One of the most critical jobs involving the plate is aligning the electric motor perfectly with the transmission input s...
Metro adapter plate dimensions
For anyone else looking for rough dimensions of the bell housing, here are 2 dimensions taken from the adapter plate....
Metro adapter plate dimensions
For anyone else looking for rough dimensions of the bell housing, here are 2 dimensions taken from the adapter plate....
