Battery mockups: another view

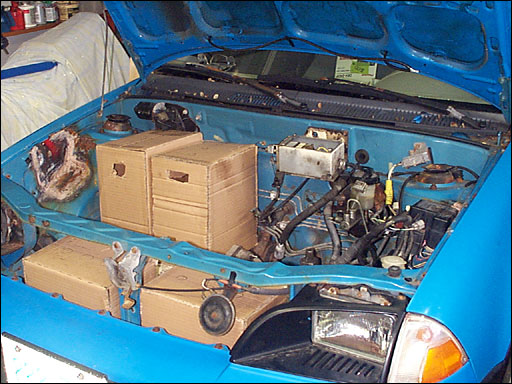

Another view of the battery position in the engine compartment. The forward batteries sit nicely on the radiator crossmember.

Just enough room for all four.
